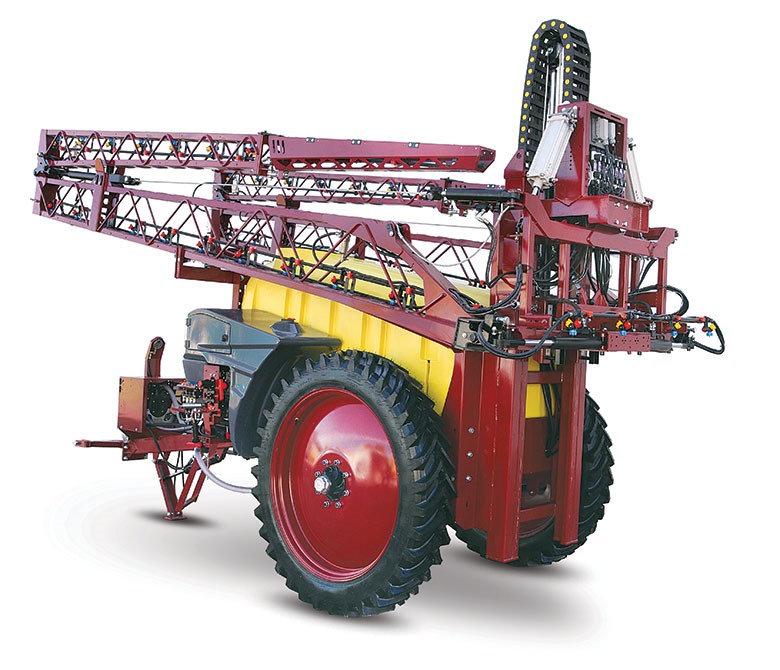

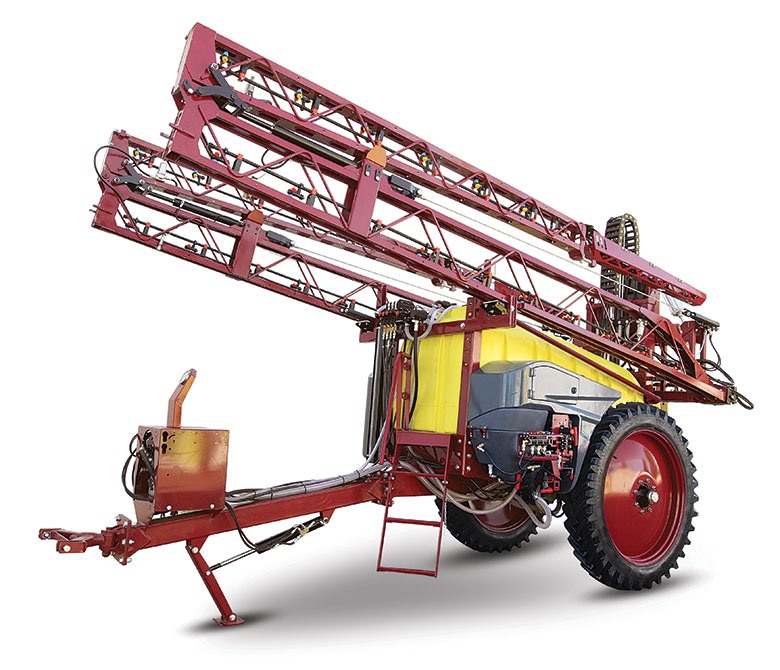

TRAILED FIELD SPRAYER FULL AUTOMATIC

GENERAL FEATURES

PICTURE GALLERY

VIDEO GALLERY

DESIGN DETAILS

TECHNICIAL SPECIFICATIONS

PRODUCT CATALOG

• Spraying pump with 4 membranes having the best performance

• Modular chassis that is produced from high quality material with robotic welding.

• Hose holder that ensures hoses to be organized between control and arm.

• Float system that measures amount of water remaining in the tank precisely.

• Modular chassis that is produced from high quality material with robotic welding.

• Durable wheels that can operate in all kinds of field conditions

• Control that provides homogeneous and precise spraying norm

• Drawbar that has height adjustment and can be attached to the tractor easily.

• Stop lamps that ensure safety of the machine in traffic.

• Reflector system that allows the machine to be noticed in traffic.

• Clean water tank independent from main tank.

• Draining system that quickly drains the water remaining in the tank after spraying.

• Folding system that prevents arm end from being damaged during operation.

Model LEPUS VTP 3000
Material Of Tank Polyethylene
Capacity of Tank It3000
Tank Washing capacity 300
Pump Model C145/ Annovi Reverberi
Pump Flow Lt/min145
Pump Pressure bar50
Control Panel Onallat T 2,0/ Arag Bravo
Working Width m24
Nozzle Type 3 fan with the beam
Number of Nozzle pcs49
Distance Between Nozzles cm50
Boom Height Adjustment Electronic
Boom Folding Adjustment Electronic
Required Tractor Power HP90
Operating Speed r/min540
Weight kg2700
Suspension boomspring
Boom height cm50/ 190
Track width cm140/ 190
Tire width 270/ 95 R44
Wings Spraying heights cm50/ 190
Width cm230
Length cm620
Height cm365
