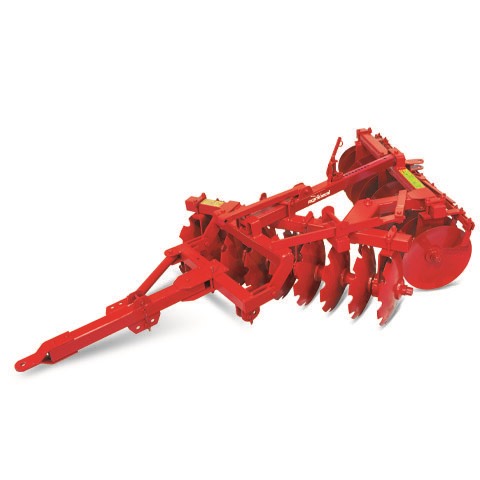

The machines which are used to dissect plant residues (corn, sunflower, wheat etc.) and weeds; to break the duff layer; for doubling and triplet in a field left for fallowing after plowing. It prepares the field directly for planting by harrowless taming without using any other agricultural machine in dry seasons where ploughs can not enter after the harvest and it may be used to tame the soil including intensive humidity as well.

  AG-CHD 16AG-CHD 18AG-CHD 20AG-CHD 22AG-CHD 24
Disc NumberPcs1618202224
Disc Diametermm560x4,5560x4,5560x4,5560x4,5560x4,5
Dist. Between Disccm2222222222
No.Of Beds On CrankPcs46888
Working Width cm176198220242264
Total Width cm221243265287309
Total Length cm166166166166166
Total Height cm220220220220220
Frame size mm100x100x6100x100x6100x100x6100x100x6100x100x6
Weight 510 mm discKg835920105011401260
Weight 560 mm discKg8701050110011901315
Power RequirementHp55-6065-7075-8085-9095-100
< >
