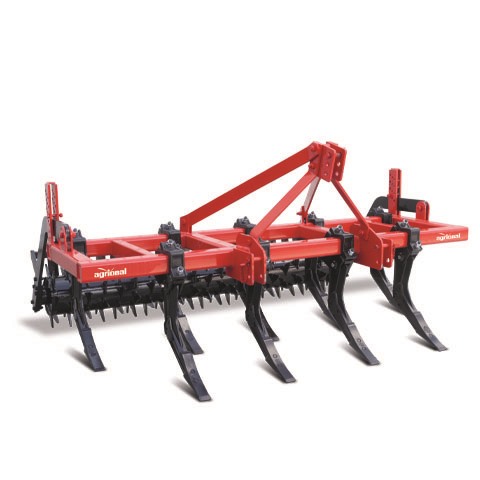

Chisel ploughs are used to cultivate the soil without any need of plough after the harvest.  It breaks the lower layer of the plough due to its stand form and it is a mounted type machine which performed soil cultivation with less clods in dry summer seasons where plowing can not be performed.

Cultivation with a high operation depth may be performed with the chisel.  It provides soil aeration, water retraction to the bottom by preventing rain water to stay on the surface and protection of the soil humidity and convenient going down for the plant roots by breaking the hard layer.  Yield is increased by this operation.

  AG-C 5AG-C7AG-C9AG-C11AG-C13AG-C15AG-C17
Number of TinePcs57911131517
Working Width cm128191235289341391441
Total Width cm157220270320370420470
Length Without Rollercm110110110120120120120
Length With Rollercm187187187197197197197
Total Height cm133133133133133133133
T7 Working Depth-Weightcm/kg68/29,368/29,368/29,368/29,368/29,368/29,368/29,3
T4 Working Depth-Weightmm/kg48/1848/1848/1848/1848/1848/1848/18
Weight Without RollerKg40045056070085010501200
Weight With RollerKg565650800970116013751590
Frame Sizemm100x100x8100x100x8100x100x8100x100x8100x100x8100x100x8100x100x8
Power RequirementHp60-7070-8080-9090-100100-110110-120120-130
