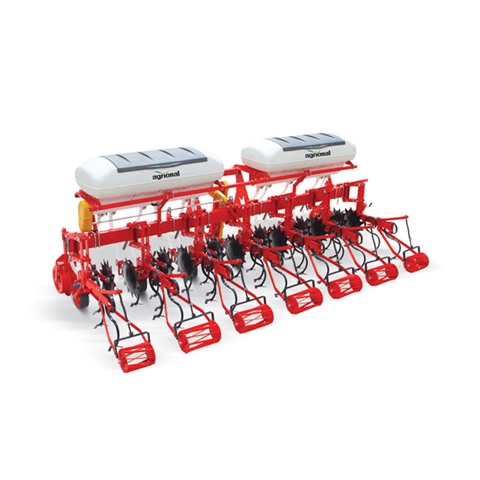

Interrow Cultivator With Spring Tines machine with springs is used for land upheavaling and destroying weeds between the plants (beets, beans, sunflower, corn, soy bean, tomato, sweet melan, water melon etc) seeded on the row and provides better fertilizer effecting on soil. Thanks to these processes, plant growing is accelerated. Row spacing of the hoing machine can be adjusted. Crop protection discs (star discs) protect the little crops to be covered by soil during hoeing. Thanks to its tine construction, it can also operate on rocky soils easily. Soil depth adjustment of each unit can be arranged according to the size of crops to be hoed. It can maintain the operation depth on rough terrains thank to the units moving independent from each other and guide discs, which protects the machine from losing movement direction and swerving, allow hoeing without damaging the crops on slopped lands.

 UnitAG-IRC5AG-IRC-G5AG-IRC6AG-IRC-G6AG-IRC7AG-IRC-G7AG-IRC9AG-IRC-G9
Number of UnitsPcs55667799
Number of TinesPcs1616212131314141
Total Length cm300330300330450480600630
Total Widthcm186186186186186186186186
Total Higthcm123170123170123170123170
Distance Between Rowscm45-9045-9045-9045-9045-9045-9045-9045-90
Weight Without Fertilizer Hopper 650-700-950-1250-
Weight With Fertilizer Hopper -800-900-1200-1600
Fertilizer Case VolumeLt-150x2-175x2-200x2-300x2
Fertilizer CapacityKg-440-440-335x2-490x2
Power RequirementHp50705070608070100
< >
